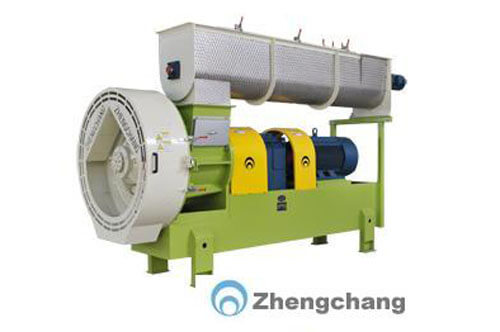

SYKH850 Forage Briquetting Machine

SYKH850 Forage Briquetting Machine
1. It is the main equipment for forage or straw briquetting,through two years market comparison,with the characteristics of high output,good performance,low energy consumption and nice appearan...
We're here to help
Easy ways to get the answers you need.
Contact Now
Contact Now
- TEL: 0086-21-64184200
- FAX: 0086-21-64163299
- E-mail: internet@zcme.com
1. It is the main equipment for forage or straw briquetting,through two years market comparison,with the characteristics of high output,good performance,low energy consumption and nice appearance.
2. Zhengchang SYKH briquetting machine with single roller makes the pressed chamber's volume more bigger,forage exerted bigger stress,high briquetting rate and well-formed briquetting.
3. Equipped with many adding liquid nozzles,molasses and cellulose enzyme can be added in.
4.Use direct drive mode,high drive efficiency,good stability and high reliability.The die for forming roller uses hard alloy steel through vacuum sintering, high output,low energy consumption, reducing the cost greatly.
2. Zhengchang SYKH briquetting machine with single roller makes the pressed chamber's volume more bigger,forage exerted bigger stress,high briquetting rate and well-formed briquetting.
3. Equipped with many adding liquid nozzles,molasses and cellulose enzyme can be added in.
4.Use direct drive mode,high drive efficiency,good stability and high reliability.The die for forming roller uses hard alloy steel through vacuum sintering, high output,low energy consumption, reducing the cost greatly.
Type Model | Output(t/h) | Power(kW) | Dimension of hay cube(mm) | Forming rate |
SYKH510 | 2-5 | 75/90/110 | 22×22 30×32 32×72 | ≥90 |
SYKH680 | 3-8 | 110/132 | 22×22 30×32 32×72 | ≥90 |
SYKH850 | 5-10 | 132/160/200 | 22×22 30×32 32×72 | ≥90 |
